Project Description

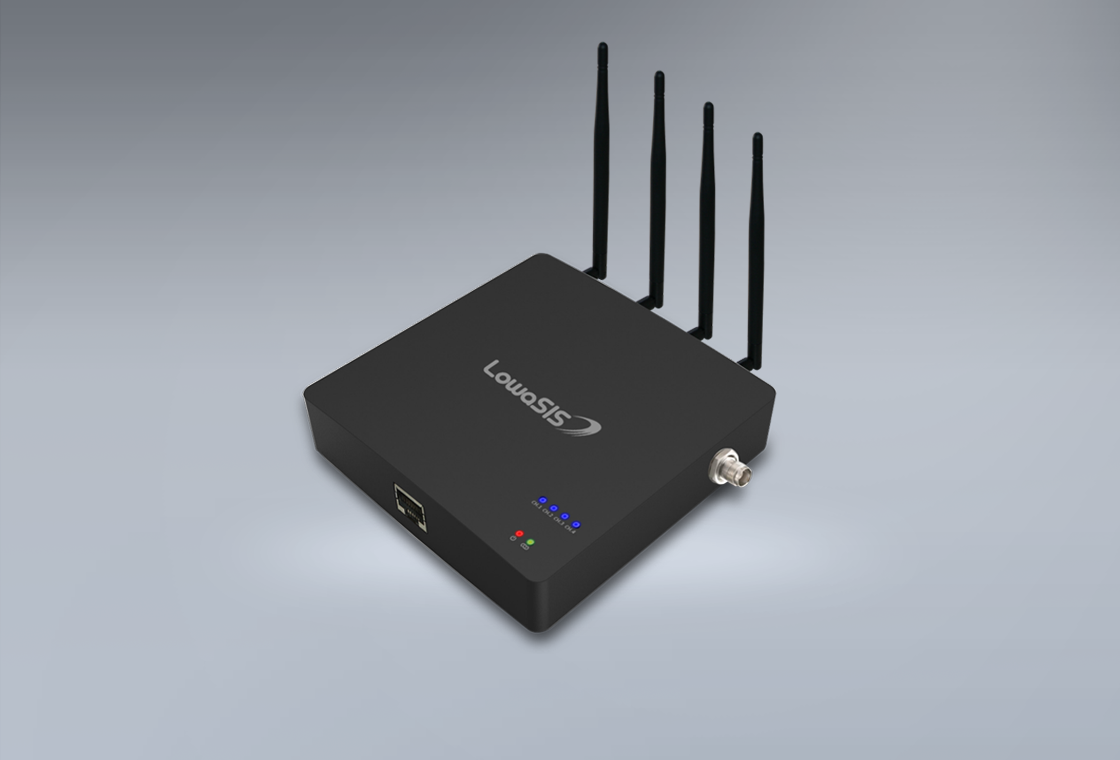

ATSC 3.0 Gateway / LGA 5102
Home Gateway capable of receiving ATSC 3.0 broadcast signals and receiving each channel from multi devices (TV, Laptop, Smartphone, etc.)
Features
The gateway device transfers the ATSC 3.0 based IP data gathered from tuners to host device.
RF input: 1 x F-connector (4-ch RF tuner included)
Data transmission: Ethernet (GbE) and WiFi(802.11n)
Channel control: conducted by application sofeware in a host device
External antenna can be attached through the F-connector.
The external dual WiFi antennas are attached through SMA connectors.
Specifications
RF Input : Terrestrial 54MHz~806MHz x 4 tuners
Input format : ATSC 3.0 (ROUTE, MMTP)
Interface : Ethernet / WiFi
Powered by external adaptor
It can transfer the ATSC 3.0 channels to any device with network function.
System Diagram
