Project Description
DtoA Converter [DCZ 4000]
Cable TV broadcasting receiver that allows digital broadcasting to be watched by subscriber with analog TV
Specifications
| Category | Function | Specification |
|---|---|---|
| Main Feature | Main SOC | BCM7543 |
| OS | RTOS (uCOS) | |
| Flash | Serial Flash 8MB | |
| RAM | 128MB | |
| Tuner & Demodulation | 8VSB, QAM | |

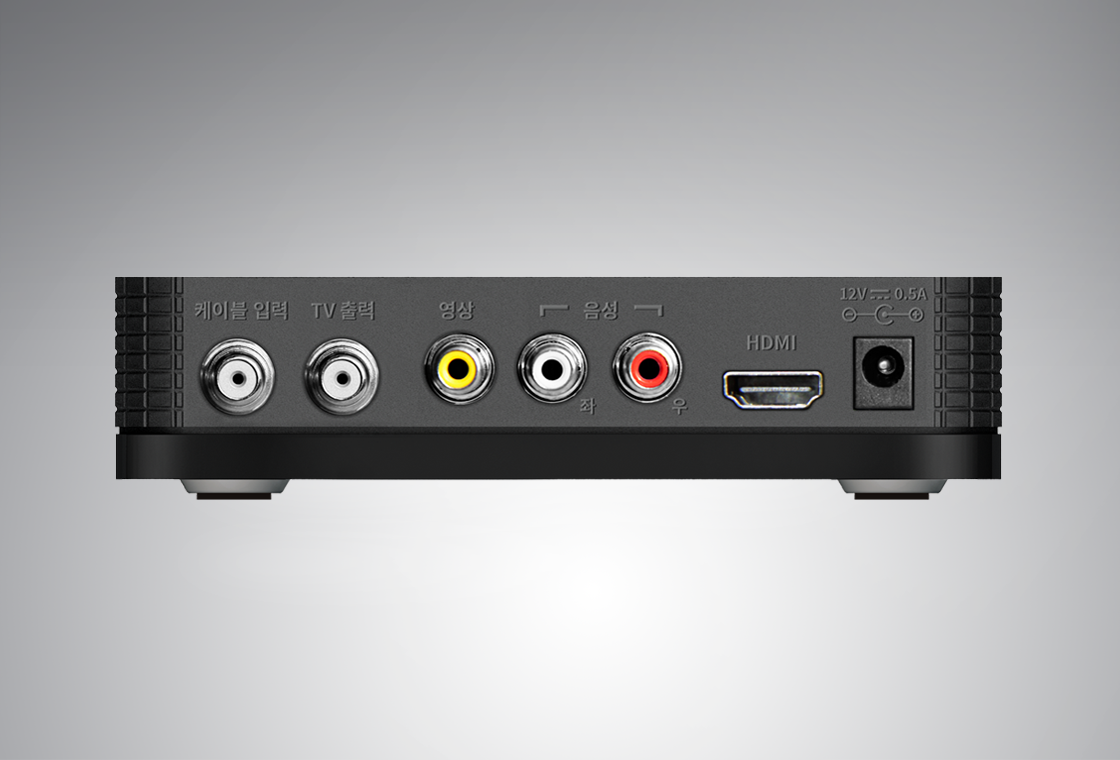

| Back Panel | RF In/Output | RF In, RF Loop-through out |
| A/V Output | Composite & Audio L/R (3xRCA) HDMI 1.4 (480p, 720p, 1080i) |
|
| DC JACK | Plug Φ3.4, Center pin:Φ1.3mm, R-A TYPE | |

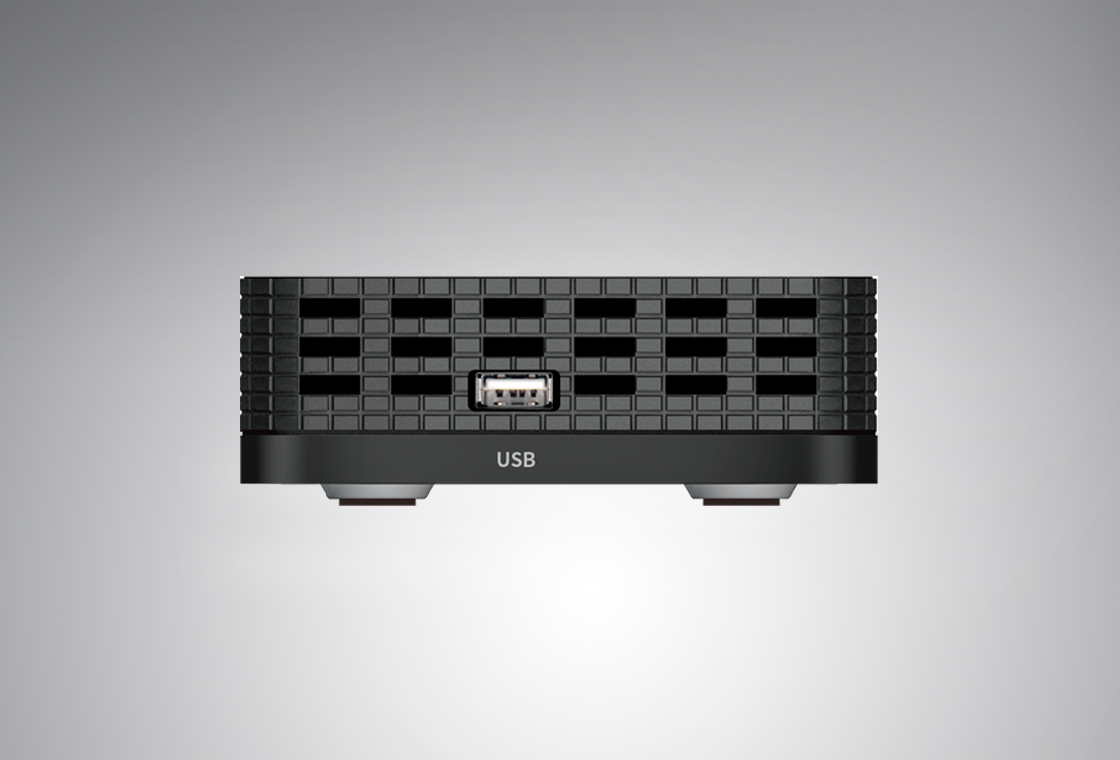

| Side Panel | USB | DC 5V/0.5A, A type Connector 1 ea |

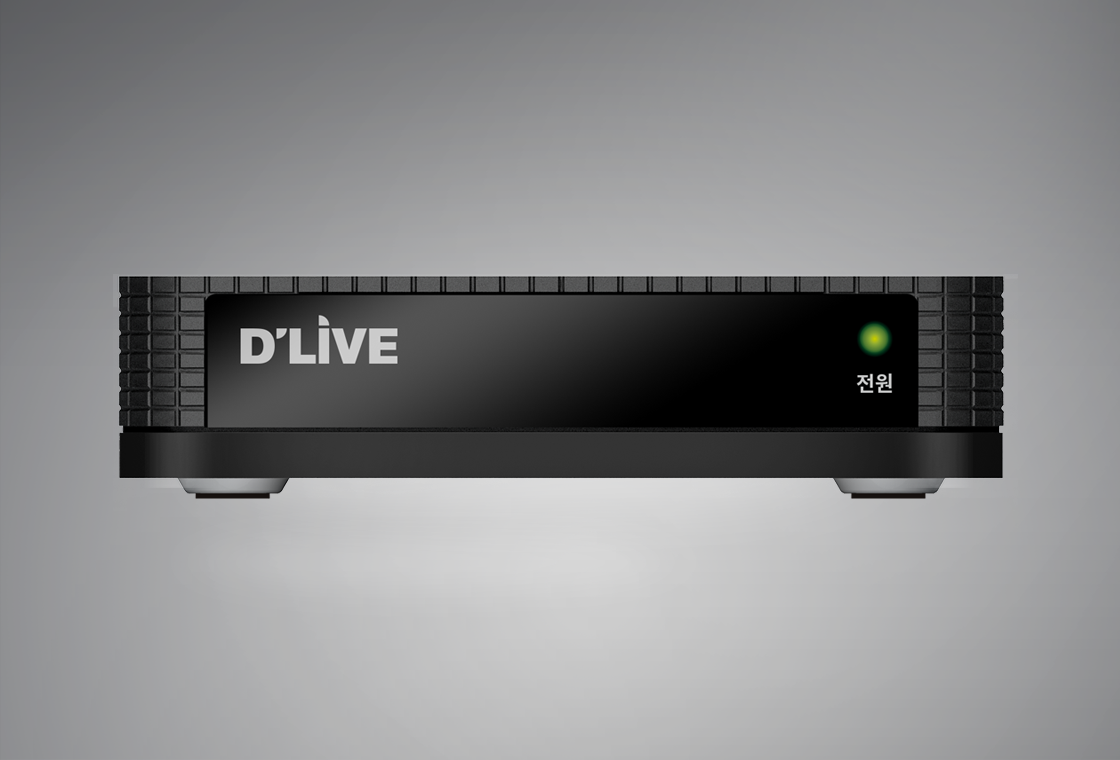

| Front Panel | Remote control | IR (38KHz) |
| Status LED | Power Off/On (RED & Green LED) |
